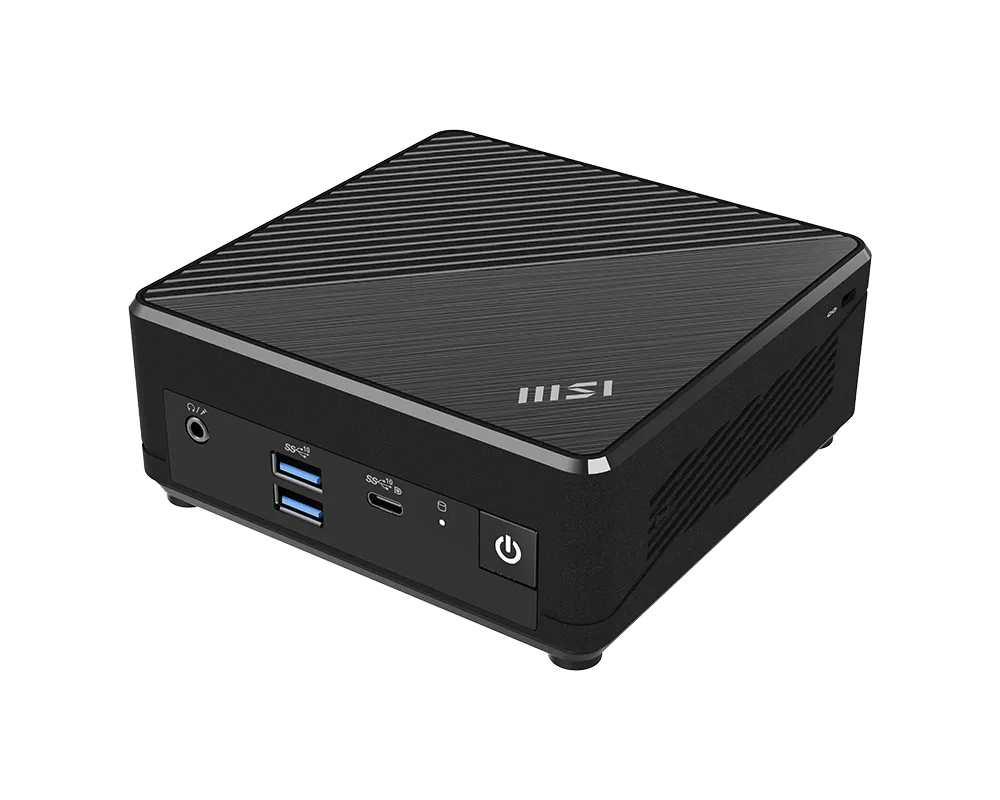

Cubi N ADL
| Differences are marked in red |
Cubi N ADL S
|
Cubi N ADL
|
| OS |
Windows 11 Home Windows 11 Pro |
Windows 11 Home Windows 11 Pro |
|---|---|---|
| CPU |
Intel® Processor N200 (6M Cache, 1.0 GHz up to 3.7 GHz) Intel® Processor N100 (6M Cache, 0.8 GHz up to 3.4 GHz) |
Intel® Processor N200 (6M Cache, 1.0 GHz up to 3.7 GHz) Intel® Processor N100 (6M Cache, 0.8 GHz up to 3.4 GHz) |
| Chipset | Intel® SoC | Intel® SoC |
| Graphics | Intel HD Graphics (NA) | Intel HD Graphics (NA) |
| I/O Ports |
2x RJ45 |
2x RJ45 |
| Cooler | Fanless 6W | Air 6W 80*80*8.5mm |
| Memory |
DDR4 3200 MHz
Max 16GB
SO-DIMM
1 Slots |
DDR4 3200 MHz
Max 16GB
SO-DIMM
1 Slots |
| Storage |
1x M.2 slots 1x M.2 SSD combo (NVMe PCIe Gen3 x2 / SATA) |
1x M.2 slots 1x M.2 SSD combo (NVMe PCIe Gen3 x2 / SATA) 1x SATA connectors 1x 2.5" Drive Bays |
| Audio | Realtek ALC256 2.1 Channel HD Audio | Realtek ALC256 2.1 Channel HD Audio |
| Communication |
2x Realtek RTL8111H
Intel Wireless AC 3168 + Bluetooth v4.2 Intel Wireless AC 9462 + Bluetooth v5 |
2x Realtek RTL8111H
Intel Wireless AC 3168 + Bluetooth v4.2 Intel Wireless AC 9462 + Bluetooth v5 |
| I/O Ports (Front) |
1x Mic-in/Headphone-out combo 1x USB 3.2 Gen 2 (10G) Type C 2x USB 3.2 Gen 2 (10G) Type A |
1x Mic-in/Headphone-out combo 1x USB 3.2 Gen 2 (10G) Type C 2x USB 3.2 Gen 2 (10G) Type A |
| I/O Ports (Rear) |
2x USB 2.0 Type A (R) 1x (v2.1) HDMI out 1x (v1.4) DP out |
2x USB 2.0 Type A (R) 1x (v2.1) HDMI out 1x (v1.4) DP out |
| Power Supply | 65W | 65W |
| VESA | 100 x 100 mm | 100 x 100 mm |
| Product Dimension (WxDxH) |
124 x 124 x 53.7 (mm) |
124 x 124 x 53.7 (mm) |
| Size |
0.7L Liter |
0.7L Liter |
| Weight |
0.54
0.54 / 1.19 (kg) 1.39 / 3.06 (lbs) |
0.54
0.54 / 1.19 (kg) 1.39 / 3.06 (lbs) |
| Noise Level |
28 db Idle mode 38 db Full loading mode |
28 db Idle mode 38 db Full loading mode |
| Mechanical and Environmental |
0° C ~ 35° C ; -20° C ~ 60° C
0% ~ 85%;0% ~ 90%
FCC(Class B) CB/CE UL(CUL) BSMI VCCI RCM(C-Tick) |
0° C ~ 35° C ; -20° C ~ 60° C
0% ~ 85%;0% ~ 90%
FCC(Class B) CB/CE UL(CUL) BSMI VCCI RCM(C-Tick) |
| Note | Cubi N ADL S | Cubi N ADL |
