GAMING IN STYLE
Play with style! GAMING is upgraded with TRI FROZR 3 to sustain intense performance during gaming and content creation.
A high-speed style matches high-performance capabilities for gamers who want to go all out.
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
-
New Streaming Multiprocessors
Up to 2x performance and power efficiency
-
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering -
Third-Gen RT Cores
Up to 2x ray tracing performance
Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture
Realistic and Immersive Graphics
Dedicated Ray Tracing Cores
AI-Accelerated Performance
NVIDIA DLSS 3
Game-Winning Responsiveness
NVIDIA Reflex low-latency platform
Built for Live Streaming
NVIDIA Encoder
AI-Enhanced Voice and Video
NVIDIA Broadcast app
Fast-Track Your Creativity
NVIDIA Studio
Performance and Reliability
Game Ready and Studio Drivers
Strength and Artistry
MSI envisioned the GAMING series as the favored graphic cards solution for all sorts of gamers, including adventure seekers, esport competitors, livestream broadcasters, and more. GAMING reflects both the spirit of gamers and the intense performance within the cards with a styled exterior that erupts with colorful lights between bold lines and edges.
GeForce RTX® 4080 Gaming X Trio
TRI FROZR 3 Thermal design
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
TORX FAN 5.0
COPPER
BASEPLATE
CORE PIPE
AIRFLOW
CONTROL
TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design
improvements to increase the air pressure and flow into the heatsink.
Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure
airflow even
at slower rotational speeds. The resulting
increased airflow is +23% compared to an axial fan.
TORX FAN 5.0
A fan cowl extends a bit beyond the general enclosure to lengthen the wind’s passageway, allowing airflow to stabilize and move smoother through the fans. Bulging notches under the cowl help to reduce recirculation, thus further improving airflow stability and reducing some noise.
COPPER BASEPLATE
FACING THE HEAT HEAD-ON
The solid nickel-plated copper base is CNC machined from a single piece of metal. Precision cuts and no welds allows heat from the GPU and memory to be immediately captured by the copper baseplate and then rapidly transferred to the heatsink.
Keeping the core cool
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.
Airflow Control improves airflow dynamics through the Wave Curved 2.0, updated deflectors, and Air Antegrade fin design for optimizing the balance between cooling and quieter acoustics.
Air Antegrade Fin
Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.
METAL BACKPLATE
Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat.
DOUBLE BALL BEARING
Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed.
The fans will automatically start spinning again when the heat is on during gaming.
Don’t Sweat the Details
BACKPLATE
BALL BEARING
ZERO FROZR
Hardening every detail
High-Efficiency Carbonyl Inductors (HCI)
Manufacturing and material improvements to our choke parts have culminated as High-Efficiency Carbonyl Inductors (HCI.) One-piece molding allows this design to operate with less choke noise and better electrical filtering.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Change Focus When Needed
Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Effective Thermal Padding
An abundance of clay-based thermal pads provide additional heat dissipation for board components.
Hardened Defenses
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
Relentless Defense
A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
Your Support Character
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
MSI CENTER
AFTERBURNER
BRINGING IT ALL TOGETHER
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks.
Learn MoreMSI AI ENGINE
The MSI AI engine optimizes system settings in real-time by learning user behavior, saving time and effort by eliminating the need for manual adjustments.
Learn MoreMYSTIC LIGHT
Splash on Some Color
Mystic Light gives you complete control of the RGB lighting for both MSI devices and compatible third-party RGB products both inside and outside your system.
Learn MoreRECOMMENDED PACKAGES
After you download MSI Center, you will be presented with a few categories to choose such as gamers, creators, work, etc. Each category contains a set of features recommended MSI for you to install.
Learn MorePRECISION CONTROLS, UNLIMITED POWER
MSI Afterburner is the most recognized and widely used graphics card overclocking software in the world. Take full control of the graphics card while monitoring key system metrics in real-time. It’s free to use and compatible with most other vendor graphics cards.
Learn MoreONE-CLICK OVERCLOCKING
OC Scanner
OC Scanner is an automated function that will find the highest stable overclock settings for your graphics card. Giving you a free performance boost for a smooth in-game experience thanks to higher FPS.
Learn More
Further With AI, Faster on RTX
Get next-level AI performance on GeForce RTX.
Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ and NVIDIA RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and next-gen capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.
Further With AI, Faster on RTX
Get next-level AI performance on GeForce RTX.
Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ and NVIDIA RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and next-gen capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.

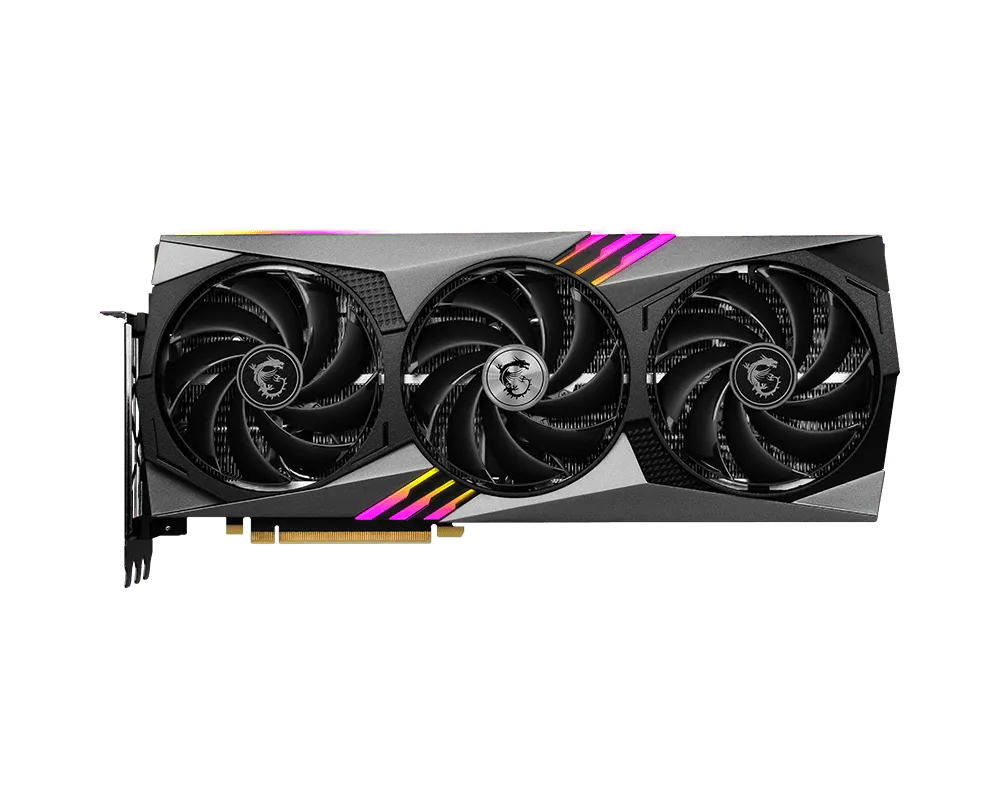

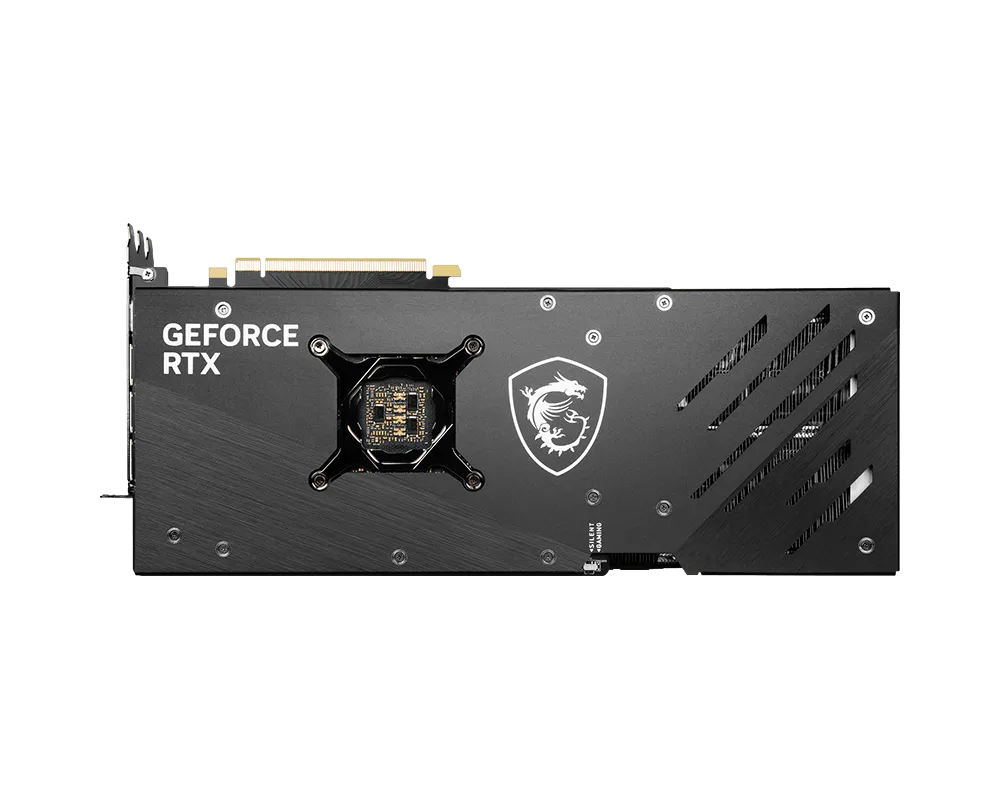

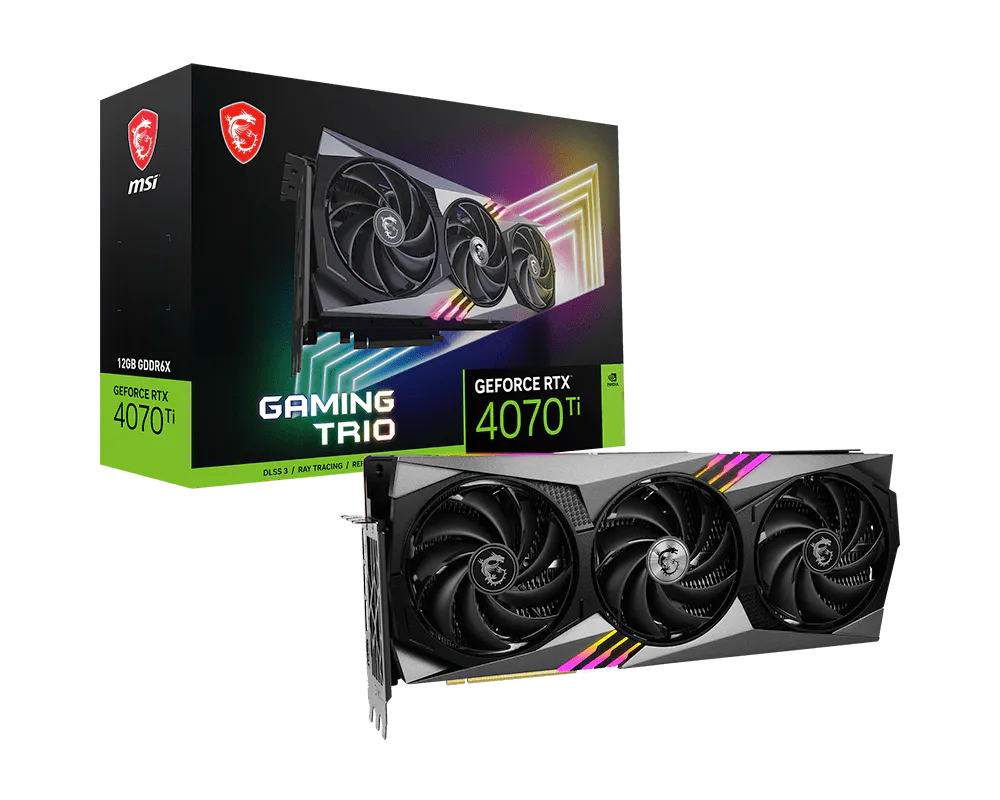

GeForce RTX™ 4070 Ti GAMING TRIO 12G
WITH DLSS 3
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- 2610 MHz (GAMING & SILENT Mode) / 21 Gbps
- 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
TRI FROZR 3 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: The CNC machined nickel-plated copper base captures heat from the GPU and the memory then rapidly transfers it to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.
Dual BIOS
- Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
