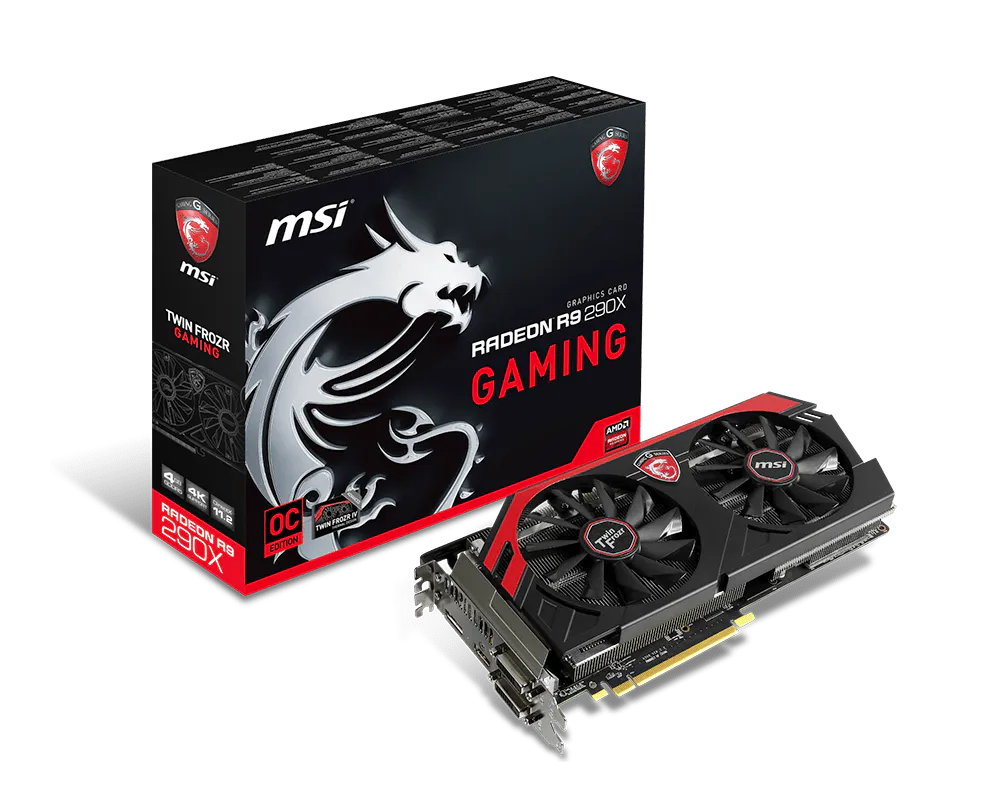

Specification Radeon R9 290X GAMING 4G

Radeon R9 290X GAMING 4G

Graphics Processing Unit
Interface
Core Clocks
Memory Speed
Memory Size
Memory Type
Memory Bus
HDCP Support
Power consumption
Power connectors
Recommended PSU
Card Dimension (mm)
Weight (Card / Package)
DirectX Version Support
OpenGL Version Support
Multi-GPU Technology
Maximum Displays
Memory Bandwidth (GB/sec)
DVI Connectors
HDMI Connectors
DisplayPort
RAMDAC speed (MHz)

Graphics Processing Unit

AMD Radeon™ R9 290X

Interface

PCI Express x16 3.0

Core Clocks

1040MHz Core (OC mode)
1030MHz Core (Gaming mode)
1000MHz Core (Silent mode)

Memory Speed

5000

Memory Size

4096

Memory Type

GDDR5

Memory Bus

512 bits

HDCP Support

Power consumption

250

Power connectors

1x6-Pin, 1x8-Pin

Recommended PSU

750

Card Dimension (mm)

276x127x39mm

Weight (Card / Package)

1010

DirectX Version Support

12 API

OpenGL Version Support

4.3

Multi-GPU Technology

CrossFire, 4-way(SW)

Maximum Displays

Up to 6 displays with the use of a DP MST Hub

Memory Bandwidth (GB/sec)

320

DVI Connectors

DL-DVI-Dx2Max Resolution: 2560 x 1600 @60 Hz

HDMI Connectors

1 (version 1.4a)
Max Resolution: 3840x2160 @30 Hz
4096x2160 @24 Hz

DisplayPort

1 (version 1.2)
Max Resolution: 4096x2160 @ 50 Hz

RAMDAC speed (MHz)

400
