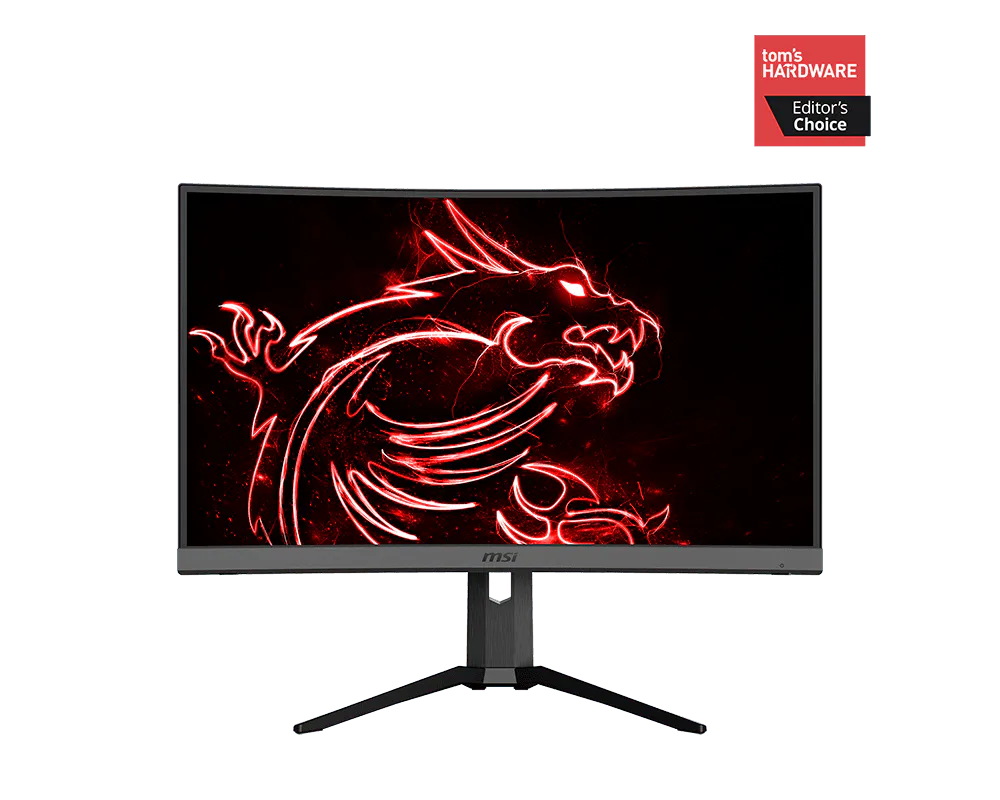

Optix MAG272CQR

Panel Size
Active Display Area (mm)
Curvature
Panel Type
Panel Resolution
Pixel Pitch (H x V)
Aspect Ratio
Brightness (nits)
Contrast Ratio
DCR
Signal Frequency
Refresh Rate
Response time
DYNAMIC REFRESH RATE TECHNOLOGY
Video ports
USB ports
Audio ports
Viewing Angle
Surface Treatment
Display Colors
DCI-P3 / sRGB
Control
Power consumption
Console Mode
Frameless Design
Power Type
Power Input
Adjustment (Tilt)
Adjustment (Height)
Kensington Lock
VESA Mounting
Weight (NW / GW)
Dimension (W x H x D)
Carton Dimension (W X H X D)
Note

Panel Size

27" (69cm)

Active Display Area (mm)

596.736(H) x 335.664(V)

Curvature

1500R

Panel Type

Panel Resolution

2560 x 1440 (WQHD)

Pixel Pitch (H x V)

0.2331(H) x 0.2331(V)

Aspect Ratio

16:9

Brightness (nits)

300 nits

Contrast Ratio

3000:1

100000000:1

Signal Frequency

70.56 to 243.37KHz (H)
48 to 165Hz (V)

Refresh Rate

165Hz

Response time

1ms(MPRT)

DYNAMIC REFRESH RATE TECHNOLOGY

Freesync premium

Video ports

1x DP (1.2a)
2x HDMI™ (2.0b)
1x USB Type C (DisplayPort Alternate)

USB ports

2x USB 3.2. Gen1 Type A
1x USB 3.2. Gen1 Type B

Audio ports

1x Earphone out

Viewing Angle

178° (H) / 178° (V)

Surface Treatment

Anti-glare

Display Colors

1.07B (8bits +2FRC)

DCI-P3 / sRGB

90% / 100%

Control

5-way OSD navigation joystick

Power consumption

61W

Console Mode

FHD @ 120Hz

Frameless Design

Yes

Power Type

Internal Adaptor

Power Input

100~240V, 50~60Hz

Adjustment (Tilt)

-5° ~ 20°

Adjustment (Height)

0 ~ 130mm

Kensington Lock

Yes

VESA Mounting

100 x 100 mm

Weight (NW / GW)

6.7kg / 9.8kg
14.77lbs / 21.61lbs

Dimension (W x H x D)

611.5 x 560 x 267 mm / 24.07 x 22.47 x 10.51 inch

Carton Dimension (W X H X D)

790 x 475 x 214 mm / 31.1 x 18.7 x 8.4 inch

Note

Display Port: 2560 x 1440 (Up to 165Hz)
HDMI™: 2560 x 1440 (Up to 144Hz)
