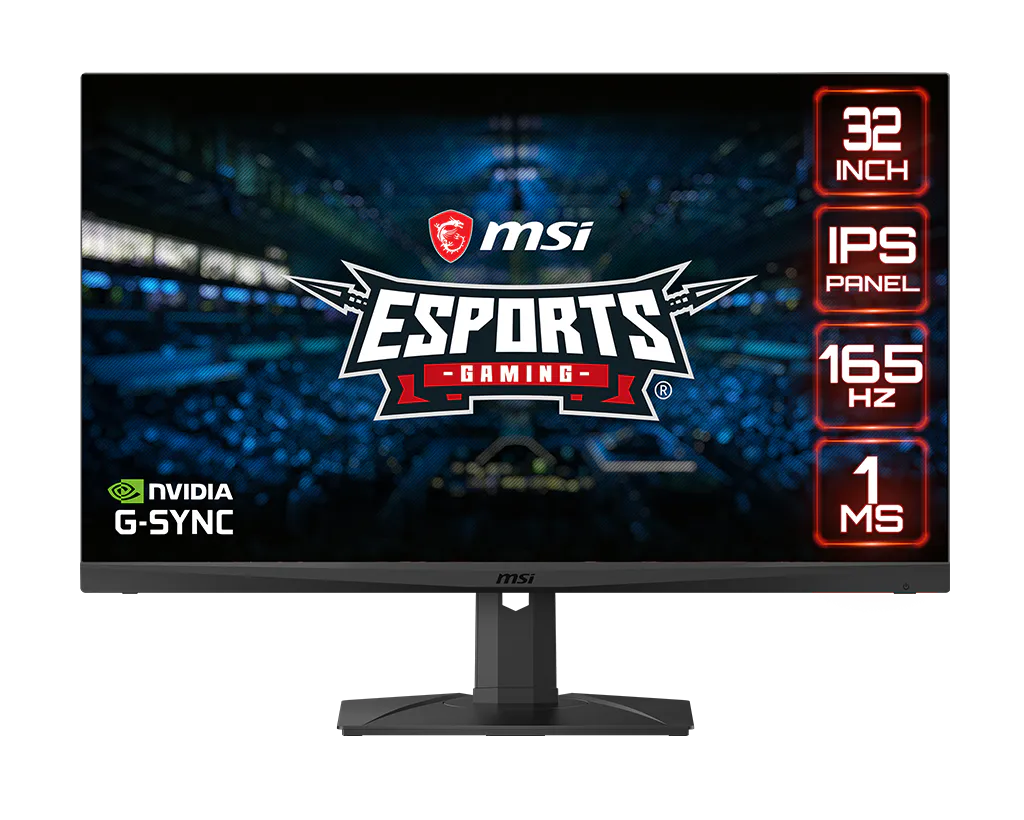

MSI Optix MAG321QR - Accurate Display. Ultimate Victory. | Esports Gaming Monitor

Optix MAG321QR

Panel Size
Active Display Area (mm)
Curvature
Panel Type
Panel Resolution
Pixel Pitch (H x V)
Aspect Ratio
Brightness (nits)
Contrast Ratio
DCR
Signal Frequency
ACTIVATED RANGE
Refresh Rate
Response time
DYNAMIC REFRESH RATE TECHNOLOGY
Video ports
USB ports
Audio ports
Viewing Angle
Surface Treatment
Display Colors
DCI-P3 / sRGB
Control
Power consumption
Console Mode
Frameless Design
PIP / PBP Function
Power Type
Power Input
Adjustment (Tilt)
Adjustment (Swivel)
Adjustment (Pivot)
Adjustment (Height)
Kensington Lock
VESA Mounting
Weight (NW / GW)
Dimension (W x H x D)
Carton Dimension (W X H X D)
Note

Panel Size

31.5"

Active Display Area (mm)

698.112(H) × 392.688(V)

Curvature

Flat

Panel Type

IPS

Panel Resolution

2560 x 1440 (WQHD)

Pixel Pitch (H x V)

0.272 (H) x 0.272 (V) mm

Aspect Ratio

16:9

Brightness (nits)

350 Nits (Typ ), 400 Nits (Peak)

Contrast Ratio

1200 (Typ.)

100000000:1

Signal Frequency

90.9 to 242.4KHz (H)
30 to 165Hz (V)

ACTIVATED RANGE

48 to 165Hz

Refresh Rate

165Hz

Response time

1ms (MPRT)

DYNAMIC REFRESH RATE TECHNOLOGY

G-sync Compatible

Video ports

1x DP out( Support 1440p@165Hz as specified in DP 1.2a)
2x HDMI™ out( Support 1440p@144Hz as specified in HDMI™ 2.0b)
1x USB 2.0 Type C (1.2a DP alt / PD 15W / USB 2.0)

USB ports

2x USB 2.0 Type A
1x USB 3.2 Gen1 Type B

Audio ports

1x Earphone out

Viewing Angle

178° (H) / 178° (V)

Surface Treatment

Anti-glare

Display Colors

1.07B

DCI-P3 / sRGB

93% / 127.1%

Control

5-way OSD navigation joystick

Power consumption

32W

Console Mode

2K Resolution PS5™ Optimization
FHD @ 120Hz
* All trademarks and the registered trademarks are the property of their respective owners.

Frameless Design

Yes

PIP / PBP Function

Power Type

External Adaptor 19V 4.74A

Power Input

100~240V, 50~60Hz

Adjustment (Tilt)

-5° ~ 20°

Adjustment (Swivel)

-45° ~ 45°

Adjustment (Pivot)

Adjustment (Height)

0 ~ 130 mm

Kensington Lock

Yes

VESA Mounting

100 x 100 mm

Weight (NW / GW)

8.23kg / 11.28kg
18.14lbs / 24.86lbs

Dimension (W x H x D)

716.2 x 476.52 x 233.68 mm / 28.2 x 18.76 x 9.2 inch

Carton Dimension (W X H X D)

960x 550 x 158 mm / 37.8 x 21.65 x 6.22 inch

Note

Display Port: 2560 x 1440 (Up to 165Hz)
Type C (DP alt.): 2560 x 1440 (Up to 165Hz)
HDMI™: 2560 x 1440 (Up to 144Hz)
DCI-P3 and sRGB follow CIE1976 Standard
