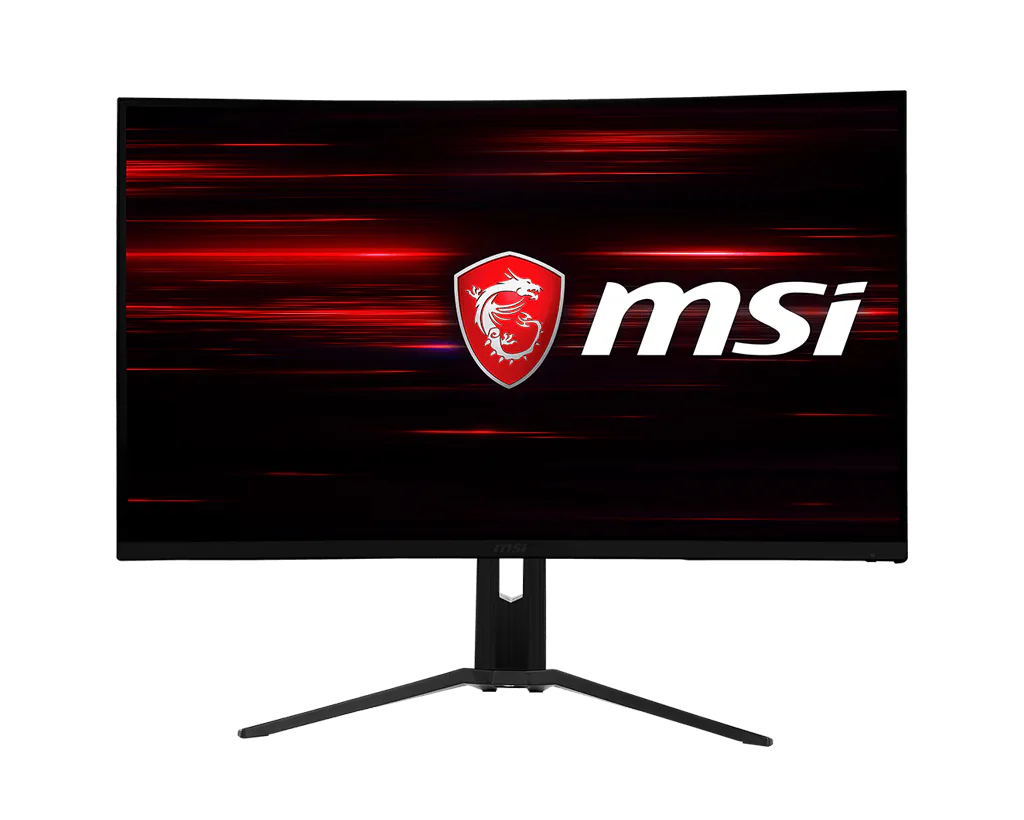

MSI Optix MAG322CQR – Redefine eSports rules | eSports Gaming Monitor

Optix MAG322CQR

Panel Size
Active Display Area (mm)
Curvature
Panel Type
Panel Resolution
Pixel Pitch (H x V)
Aspect Ratio
Brightness (nits)
Contrast Ratio
DCR
Signal Frequency
Refresh Rate
Response time
DYNAMIC REFRESH RATE TECHNOLOGY
Video ports
USB ports
Audio ports
Viewing Angle
Surface Treatment
Display Colors
DCI-P3 / sRGB
Console Mode
Frameless Design
Power Type
Power Input
Adjustment (Tilt)
Adjustment (Height)
Kensington Lock
VESA Mounting
Weight (NW / GW)
Dimension (W x H x D)
Carton Dimension (W X H X D)
Note

Panel Size

31.5" (80 cm)

Active Display Area (mm)

697.344 (H) x 392.256(V)

Curvature

1500R

Panel Type

Panel Resolution

2560 x 1440 (WQHD)

Pixel Pitch (H x V)

0.2724 (H) x 0.2724 (V)

Aspect Ratio

16:9

Brightness (nits)

300

Contrast Ratio

3000:1

100000000:1

Signal Frequency

70.56 to 243.38KHz(H)
48 to 165Hz(V)

Refresh Rate

165Hz

Response time

1ms(MPRT)

DYNAMIC REFRESH RATE TECHNOLOGY

Freesync premium

Video ports

1x DP (1.2a)
2x HDMI™ (2.0b)
1x USB Type C (DisplayPort Alternate)

USB ports

2x USB 2.0 Type A
1x USB 2.0 Type B

Audio ports

1 x Earphone out

Viewing Angle

178°(H)/178°(V)

Surface Treatment

Anti-glare

Display Colors

1.07B (8bits +2FRC)

DCI-P3 / sRGB

96% / 124%

Console Mode

FHD @ 120Hz

Frameless Design

Yes

Power Type

External Adapter

Power Input

100~240V, 50~60Hz

Adjustment (Tilt)

-5° ~ 20°

Adjustment (Height)

0 - 130mm

Kensington Lock

Yes

VESA Mounting

100 x 100 mm

Weight (NW / GW)

7kg / 10kg ;15.43lbs/ 21.25lbs

Dimension (W x H x D)

710.38 x 513.6 x 266.5 mm / 27.95 x 20.11 x 10.33 inch

Carton Dimension (W X H X D)

947 x 520 x 162 mm / 37.67 x 21.25 x 7.08 inch

Note

Display Port: 2560 x 1440 (Up to 165Hz)
HDMI™: 2560 x 1440 (Up to 144Hz)
DCI-P3 and sRGB follow CIE1976 Standard
