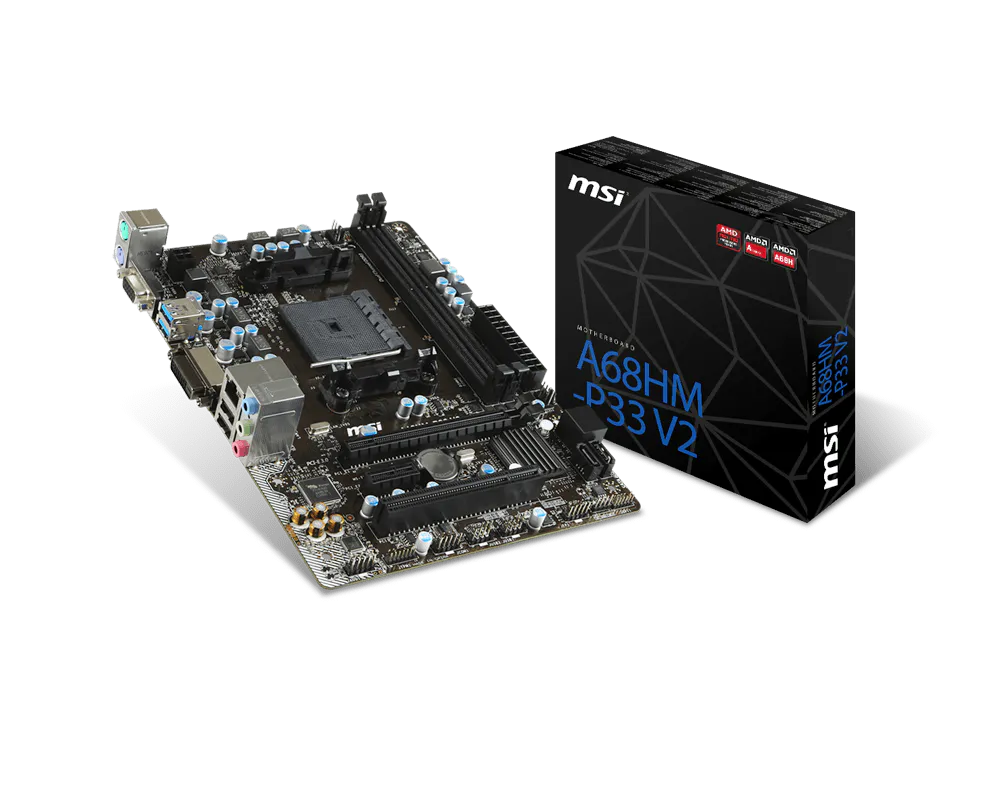

Specification A68HM-P33 V2

A68HM-P33 V2

Socket
Chipset
DDR3 Memory
Memory Channel
DIMM Slots
Max Memory (GB)
PCI-E x16
PCI-E Gen
PCI-E x1
PCI
SATAIII
RAID
TPM (header)
USB 3.0 ports (Rear)
USB 2.0 ports (Front)
USB 2.0 ports (Rear)
Audio ports (Rear)
VGA
DVI
VGA Max Share Memory (MB)
DirectX
Dual Graphics
Form Factor

Socket

FM2+

Chipset

AMD® A68H

DDR3 Memory

DDR3 1333/1600/1866/2133*(*OC)

Memory Channel

Dual

DIMM Slots

Max Memory (GB)

PCI-E x16

PCI-E Gen

Gen3 (1x16)

PCI-E x1

SATAIII

RAID

0/1/10

TPM (header)

USB 3.0 ports (Rear)

USB 2.0 ports (Front)

USB 2.0 ports (Rear)

Audio ports (Rear)

VGA Max Share Memory (MB)

2048

DirectX

DX11.1

Dual Graphics

Form Factor

M-ATX

CPU

• Supports FM2+ Socket for AMD® A-series/ Athlon™ Series Processor

Chipset

• AMD A68H

Main Memory

• 2 x DDR3 memory slots supporting up to 32GB
• Supports DDR3 2133(OC)/ 1866/ 1600/ 1333 MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports AMD Memory Profile (AMP)
• Supports Extreme Memory Profile (XMP)

Slots

• 1 PCI Express x16 slot
• 1 PCI Express x1 slot
• 1 PCI slot, Support 3.3V/ 5V PCI bus Interface

VGA

• 1 x VGA port, supporting a maximum resolution of 1920x1200@ 60Hz, 24bpp
• 1x DVI-D port, supporting a maximum resolution of 2560x1600@60Hz, 24bpp/ 1920x1200@60Hz, 24bpp

On-Board SATA

• 4 x SATA 6Gb/s ports
- Supports RAID 0, RAID1 and RAID 10

USB

• 2 x USB 3.0 ports on the back panel
• 6 x USB 2.0 ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio

• Realtek® ALC887 Codec
• Flexible 8-channel audio with jack sensing
• Compliant with Azalia 1.0 Spec

LAN

• Realtek® RTL8111G Gigabit LAN

Back Panel I/O Ports

- 1 PS/2 mouse port
- 1 PS/2 keyboard port
- 1 VGA port
- 1 DVI port
- 2 USB 2.0 ports
- 2 USB 3.0 ports
- 1 LAN(RJ45)port
- 3 x audiojacks

Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x4-pin system fan connector
- 1 x Front panel audio connector
- 2 x system panel connector
- 1 x Chassis intrusion connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Clear CMOS jumper

Dimension

• Micro-ATX 22.6 cm x 17.3 cm

Mounting

• 6 mounting holes
