TPM 2.0 Module

The TPM (Trusted Platform Module) enhances security above and beyond the capabilities of consumer software, which is also used to keep your PC running well. MSI TPM2.0 Module enables a deeper and broader level of security coverage.

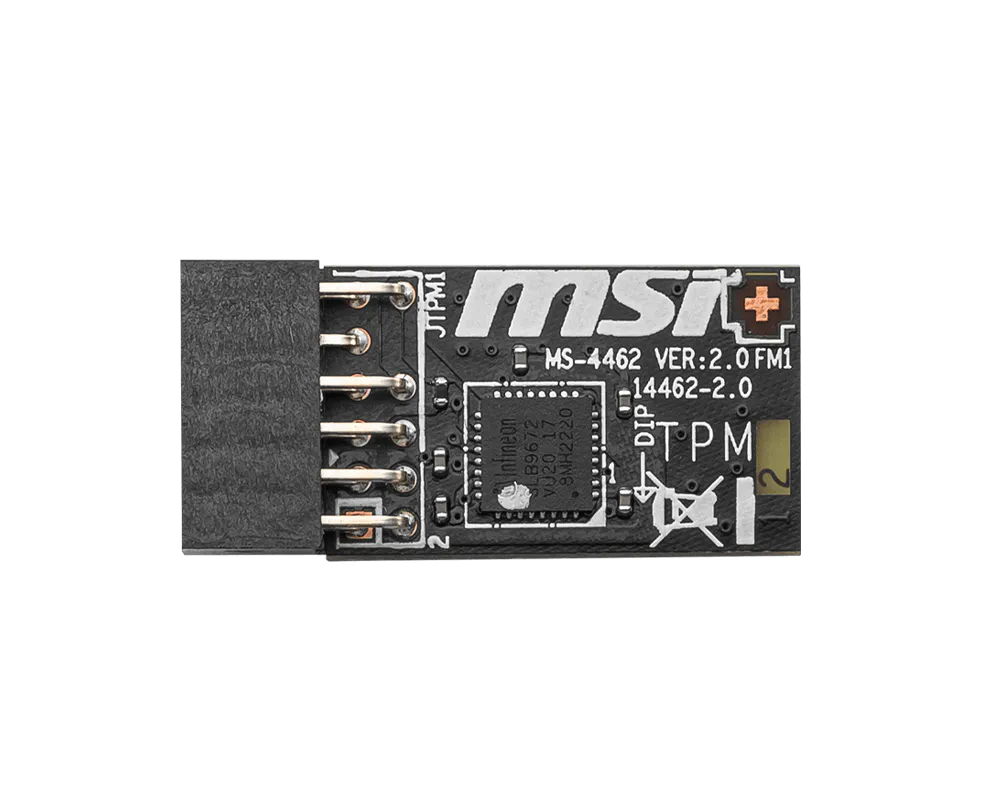

TPM 2.0 (MS-9672) shadow

TPM 2.0 (9672)

  • Chipset

    INFINEON 9672 TPM 2.0 (FW 15.22)

  • Interface

    SPI

  • Dimension

    12.9 x 21.5 mm

  • Pin Define

    12-1 Pin

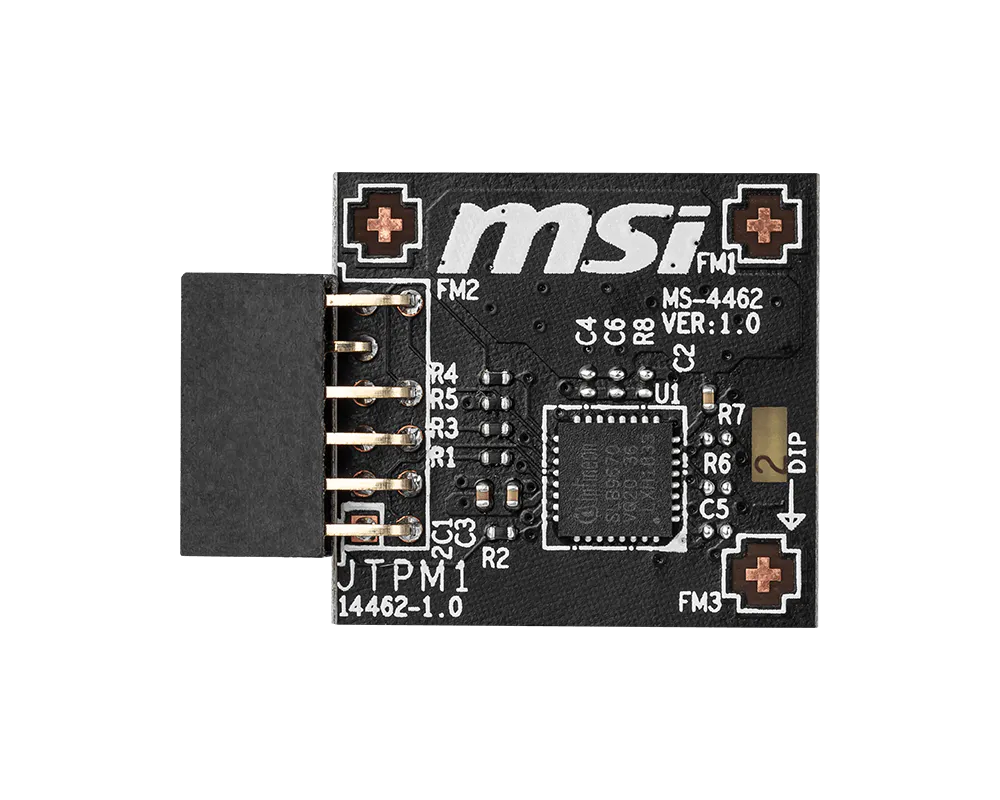

TPM 2.0 (MS-4462) shadow

TPM 2.0 (MS-4462)

  • Chipset

    INFINEON 9670 TPM 2.0 (FW 7.85)

  • Interface

    SPI

  • Dimension

    25 x 20 mm

  • Pin Define

    12-1 Pin

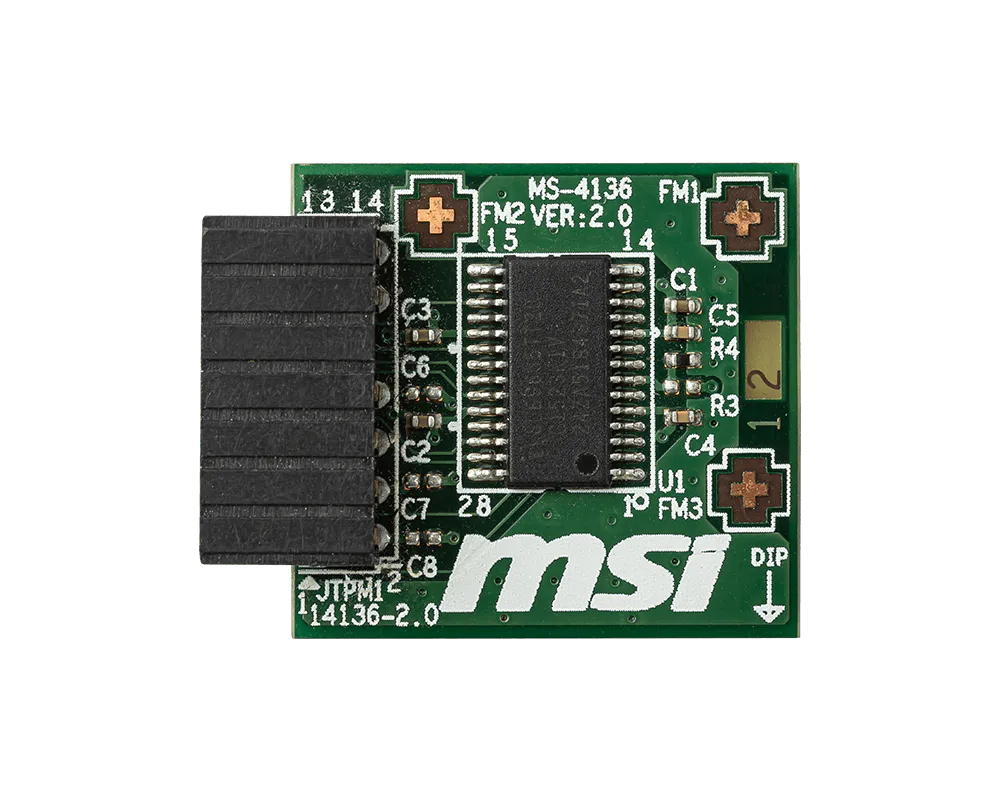

TPM 2.0 (MS-4136) shadow

TPM 2.0 (MS-4136)

  • Chipset

    INFINEON 9665 TPM 2.0 (FW 5.63)

  • Interface

    LPC

  • Dimension

    25 x 20 mm

  • Pin Define

    14-1 Pin

TPM 2.0 Module

TPM 2.0 (9672)

  • SPI interface

TPM 2.0 (MS-4462)

  • SPI interface

TPM 2.0 (MS-4136)

  • LPC interface

See supported motherboards
