ATX 3.1Ready
PCIe 5.1Ready
80 Plus Gold
2x Total Power Excursion
3x GPU Power Excursion
Flat Cables
Single Rail
unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they
were reborn
as the symbol of sturdiness and durability.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
ATX 3.1 Ready
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.
PCIe CEM 5.1
This power supply features a native PCIe 16-pin connector with a 600W power capacity, compliant with the PCIe CEM 5.1 standard, providing more stable and secure power delivery for RTX 40 series graphics cards.
Flexible configuration for graphics cards with two types of power connectors, including a dual PCIe 6+2-pin connector and a native 16-pin connector.
1 X 16-PIN
2 X 6+2-PIN
Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.
8+8 power connector
8+4 power connector
POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.
SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.
Power 100%

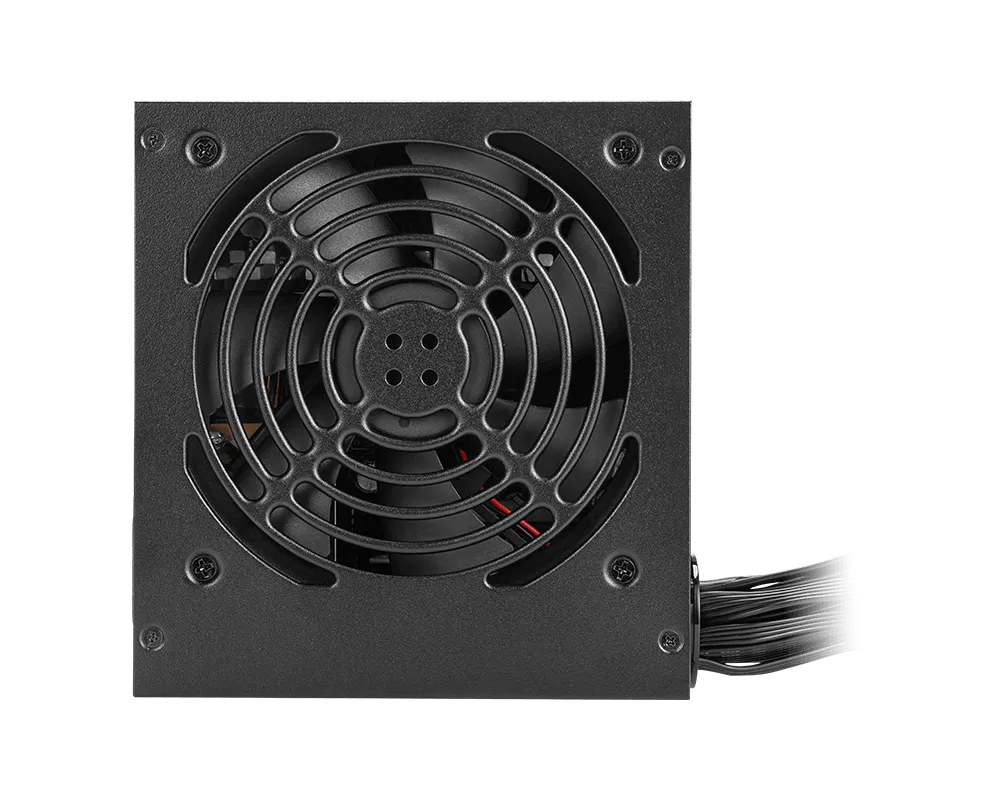

FAN
The fan curve is designed to prioritize low noise output while maintaining effective cooling. When the power supply operates at 70% load, the resulting noise level is kept below 20 dBA.
Capacitors You Can Trust
The 105°C main capacitor is designed to perform reliably in handling high temperatures and peak voltage fluctuations. It ensures stable performance, providing your system with dependable reliability.
CERTIFIED CABLE
This power supply comes equipped with certified cables and connector made of copper alloy terminals. This provides greater safety than typical phosphor bronze connectors, especially during high current surges.
PROTECTION MECHANISMS
operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.
OCP
Over Current Protection
OTP
Over Temperature Protection
OVP
Over Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
connectors
This power supply equipped with black, flat cables that are soft, and easy to bend, making cable management a breeze.
ATX
(24 PIN) x1
EPS
(4+4 PIN) x2
PCIe
(6+2 PIN) x2
PCIe 5.1
(16 PIN) x1
SATA+MOLEX
x1
x1
SATA+MOLEX
x3
x1

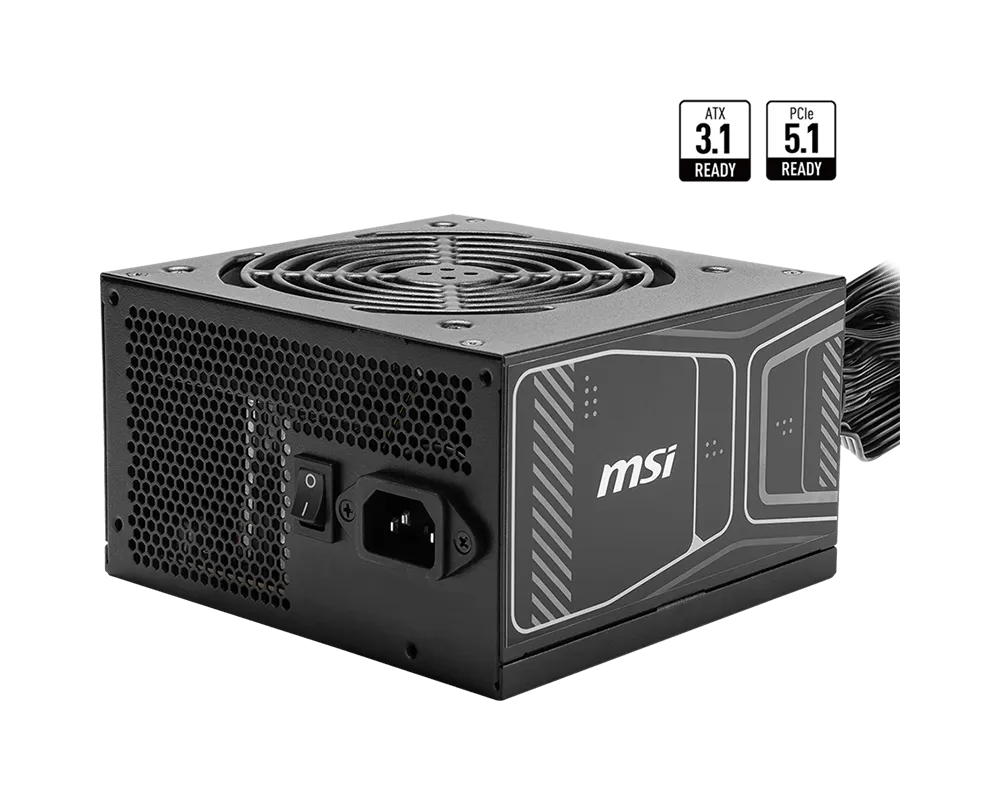

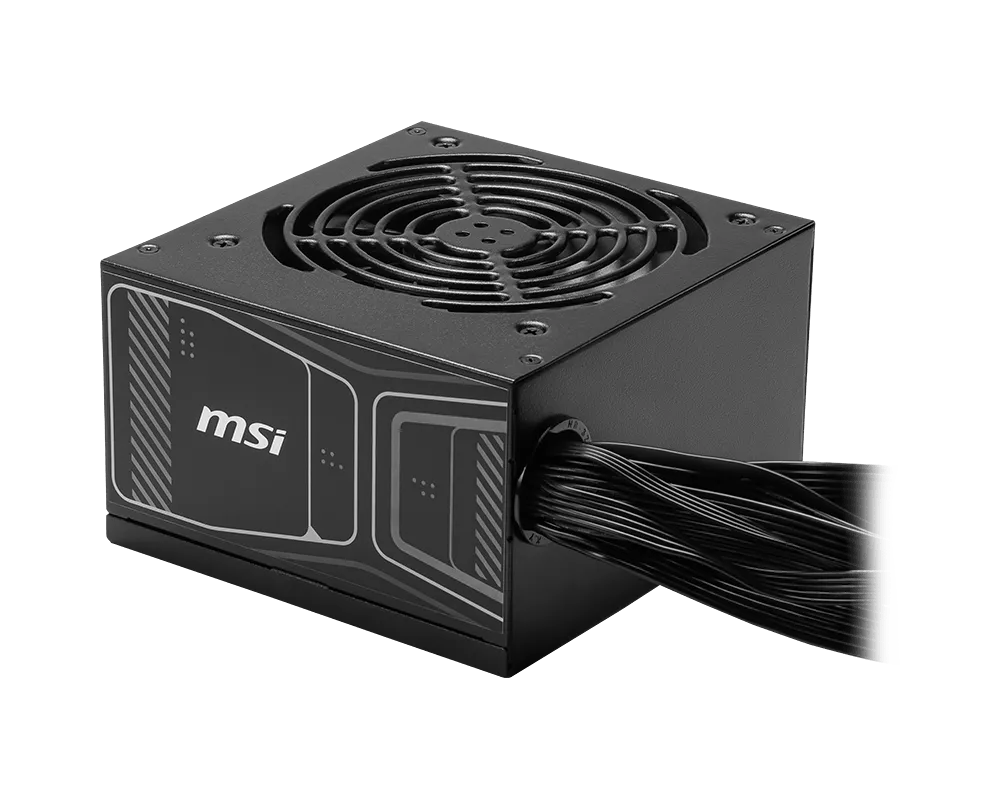

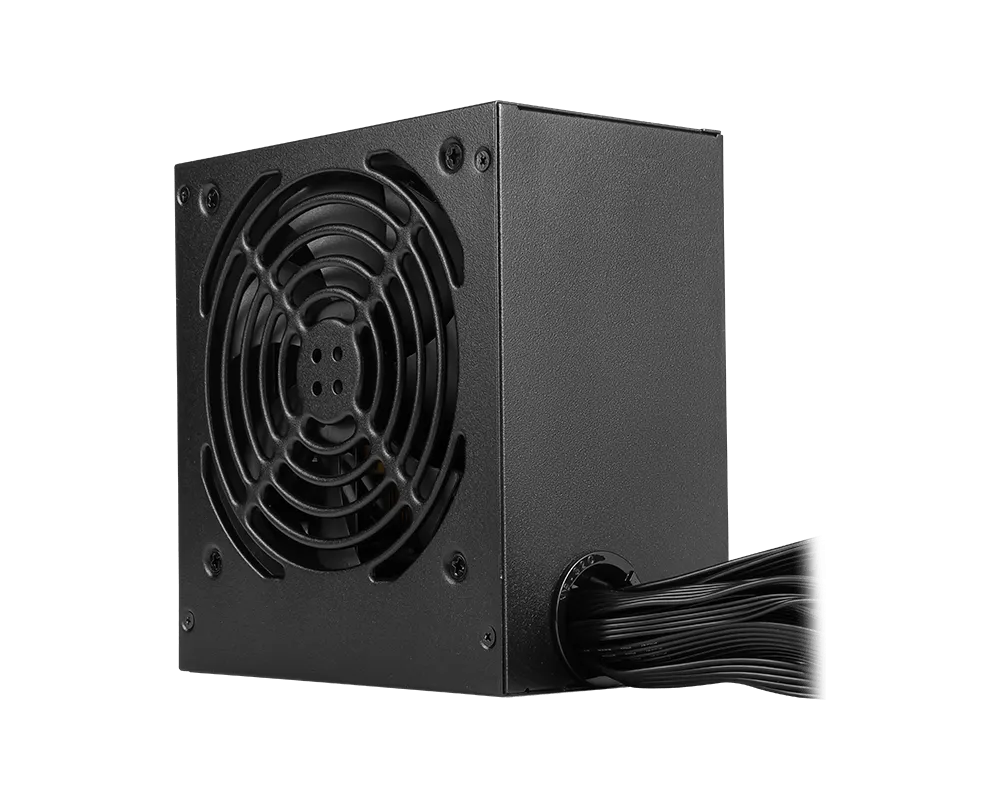

MAG A850GN PCIE5
- ATX 3.1 ready, native PCIe 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 Series graphics cards
- 105°C main capacitor
- 80 Plus Gold certified for high efficiency with Active PFC design
- Industrial level protection with OVP, OCP, OPP, OTP, SCP
- 120 mm Sleeve Bearing Fan
- Full Bridge Topology with DC-DC module design
