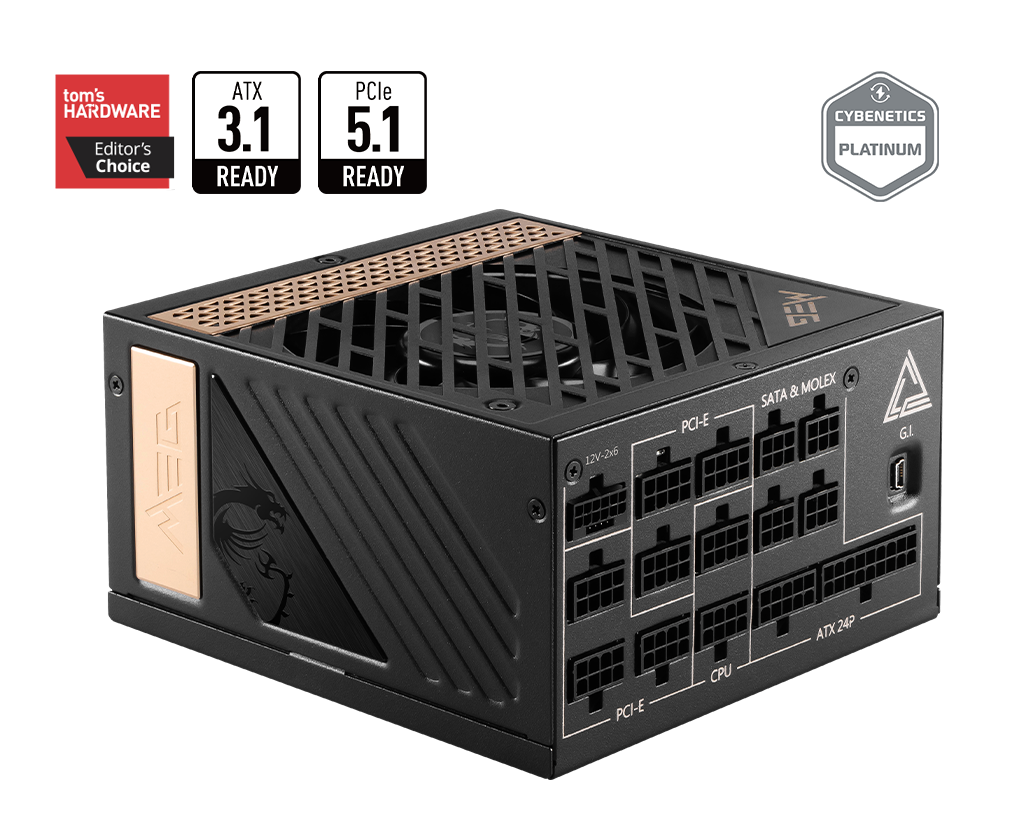

MEG Ai1000P PCIE5

Efficiency Rating
Modular
Fan Size
Fan Bearing
Dimensions (DxWxH)
PFC Type
Input Voltage Range
Power Watt
Power Excursion
Input Frequency Range
Protection
ATX (24 pin)
EPS (8 pin)
EPS (4+4 pin)
PCI-E 5.0 (16 pin)
PCI-E (6+2 pin)
SATA (15 pin)
MOLEX (4 pin)
FDD (4 pin)

Efficiency Rating

80 PLUS Platinum (up to 92%)

Modular

Yes (full modular)

Fan Size

120 mm

Fan Bearing

Hydro Dynamic Bearing

Dimensions (DxWxH)

160 x 150 x 86 mm

PFC Type

Active PFC

Input Voltage Range

100-240~

Power Watt

1000W

Power Excursion

2000W (*up to 200% of the PSU's rated power for 100μs)

Input Frequency Range

50~60 Hz

Protection

OCP / OVP / OPP / OTP / SCP / UVP

ATX (24 pin)

EPS (8 pin)

EPS (4+4 pin)

PCI-E 5.0 (16 pin)

1 (600W)

PCI-E (6+2 pin)

SATA (15 pin)

MOLEX (4 pin)

FDD (4 pin)
