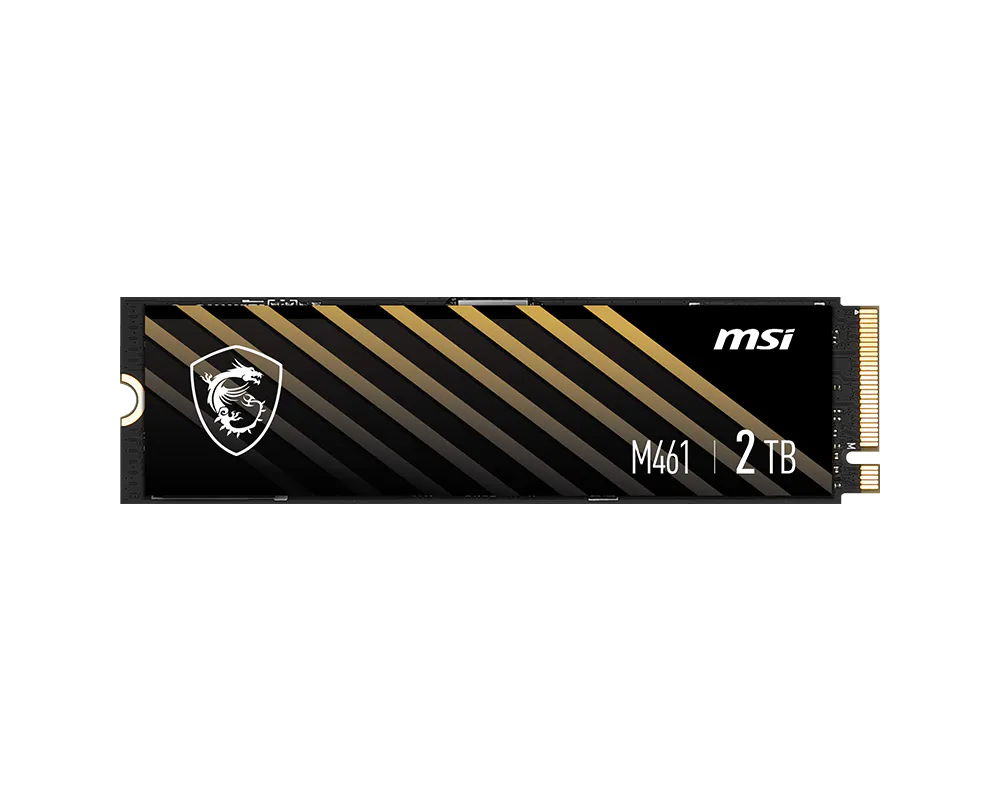

M461 PCIe 4.0 NVMe M.2
| Differences are marked in red | M461 PCIe 4.0 NVMe M.2 500GB | M461 PCIe 4.0 NVMe M.2 1TB | M461 PCIe 4.0 NVMe M.2 2TB | M461 PCIe 4.0 NVMe M.2 4TB |
|---|---|---|---|---|
| Model Name | M461 PCIe 4.0 NVMe M.2 | M461 PCIe 4.0 NVMe M.2 | M461 PCIe 4.0 NVMe M.2 | M461 PCIe 4.0 NVMe M.2 |
| Capacity | 500GB | 1TB | 2TB | 4TB |
| Controller | PHISON E21T | PHISON E21T | PHISON E21T | PHISON E21T |
| Flash Memory | 3D NAND | 3D NAND | 3D NAND | 3D NAND |
| Form Factor | M.2 2280 | M.2 2280 | M.2 2280 | M.2 2280 |
| Interface | PCIe Gen4x4, NVMe 1.4 | PCIe Gen4x4, NVMe 1.4 | PCIe Gen4x4, NVMe 1.4 | PCIe Gen4x4, NVMe 1.4 |
| Compatibility | PCIe Gen4 / Gen3 / Gen2 / Gen1 | PCIe Gen4 / Gen3 / Gen2 / Gen1 | PCIe Gen4 / Gen3 / Gen2 / Gen1 | PCIe Gen4 / Gen3 / Gen2 / Gen1 |
| Dimensions | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) | 80.00mm (L) x 22.00mm (W) x 2.15mm (H) |
| Sequential Read up to (MB/s) | 4700 | 5000 | 5000 | 5000 |
| Sequential Write up to (MB/s) | 1700 | 3200 | 4200 | 4200 |
| Random Read 4KB up to (IOPS) | 320,000 | 630,000 | 680,000 | 600,000 |
| Random Write 4KB up to (IOPS) | 400,000 | 750,000 | 880,000 | 850,000 |
| Maximum Operating Power (W) | 3.7 | 4.1 | 4.4 | 5.1 |
| Idle Power PS3 (mW) | 50 | 50 | 50 | 50 |
| Low Power L1.2 (mW) | 5 | 5 | 5 | 5 |
| Operating Temperatures | 0°C – 70°C | 0°C – 70°C | 0°C – 70°C | 0°C – 70°C |
| Storage Temperatures | -40°C – 85°C | -40°C – 85°C | -40°C – 85°C | -40°C – 85°C |
| Terabytes Written (TBW) | 110 | 250 | 450 | 900 |
| Mean Time Between Failure (MTBF) | Up to 1,500,000 Hours | Up to 1,500,000 Hours | Up to 1,500,000 Hours | Up to 1,500,000 Hours |
| Limited Warranty | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. | 5 Years, or the coverage for the maximum TBW as stated, whichever comes first. |
| Advanced Features | TRIM (Performance Optimization, OS Support required)<br /> SMART (Self-Monitoring, Analysis and Reporting Technology)<br /> LDPC (Low Density Parity Check) ECC Algorithm<br /> End to End Data Path Protection<br /> APST (Autonomous Power State Transition)<br /> Pyrite (Encryption, Data Security) | TRIM (Performance Optimization, OS Support required)<br /> SMART (Self-Monitoring, Analysis and Reporting Technology)<br /> LDPC (Low Density Parity Check) ECC Algorithm<br /> End to End Data Path Protection<br /> APST (Autonomous Power State Transition)<br /> Pyrite (Encryption, Data Security) | TRIM (Performance Optimization, OS Support required)<br /> SMART (Self-Monitoring, Analysis and Reporting Technology)<br /> LDPC (Low Density Parity Check) ECC Algorithm<br /> End to End Data Path Protection<br /> APST (Autonomous Power State Transition)<br /> Pyrite (Encryption, Data Security) | TRIM (Performance Optimization, OS Support required)<br /> SMART (Self-Monitoring, Analysis and Reporting Technology)<br /> LDPC (Low Density Parity Check) ECC Algorithm<br /> End to End Data Path Protection<br /> APST (Autonomous Power State Transition)<br /> Pyrite (Encryption, Data Security) |
