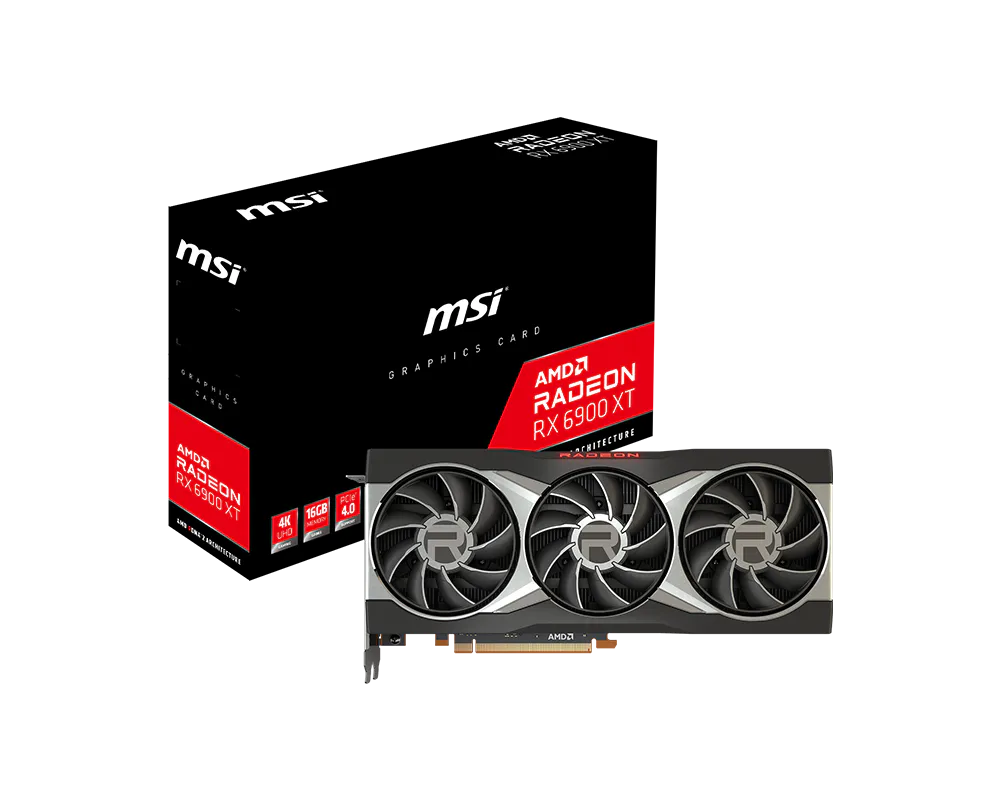

Radeon RX 6900 XT 16G

Model Name
Graphics Processing Unit
Interface
Core Clocks
CUDA^® CORES
Memory Speed
Memory
Memory Bus
Output
HDCP Support
Power consumption
Power connectors
Recommended PSU
Card Dimension (mm)
Weight (Card / Package)
OpenGL Version Support
Maximum Displays
VR Ready
Digital Maximum Resolution

Model Name

Graphics Processing Unit

Radeon™ RX 6900 XT

Interface

PCI Express 4.0

Core Clocks

Boost: Up to 2250 MHz
Game: 2015 MHz
Base: 1825 MHz

CUDA^® CORES

5120 Units

Memory Speed

16 Gbps

Memory

16GB GDDR6

Memory Bus

256-bit

Output

DisplayPort x 2 (v1.4)
HDMI™ x 1 (Supports 4K@120Hz as specified in HDMI™ 2.1)
USB Type-C x 1

HDCP Support

Power consumption

300W

Power connectors

8-pin x 2

Recommended PSU

850 W

Card Dimension (mm)

267 x 120 x 50mm

Weight (Card / Package)

1520 g / 2030 g

OpenGL Version Support

4.6

Maximum Displays

VR Ready

Digital Maximum Resolution

7680x4320
